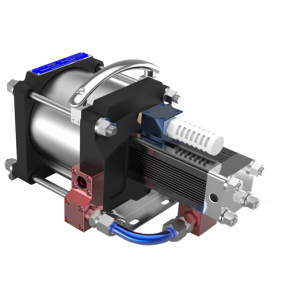

LZSG5 SERIES
ㆍ상품코드 : LZSG5 -15P,30P,50P,75P

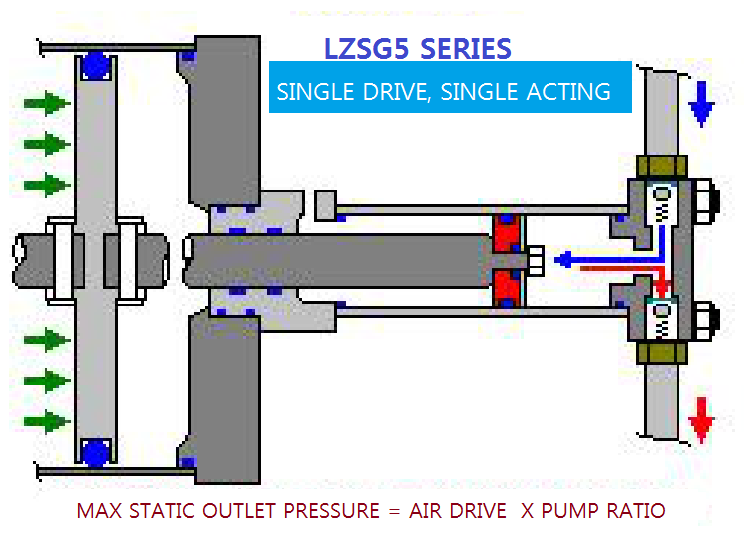

ㆍType : Single Acting/ Single Drive
ㆍMax Rated Outlet pressure : psi 2,250-11,250
ㆍActual In³( cm³) /Cycle : In³: 1.55-7.76, cm³:25.4-125.6
ㆍSuitable gases : N2, H, Ar

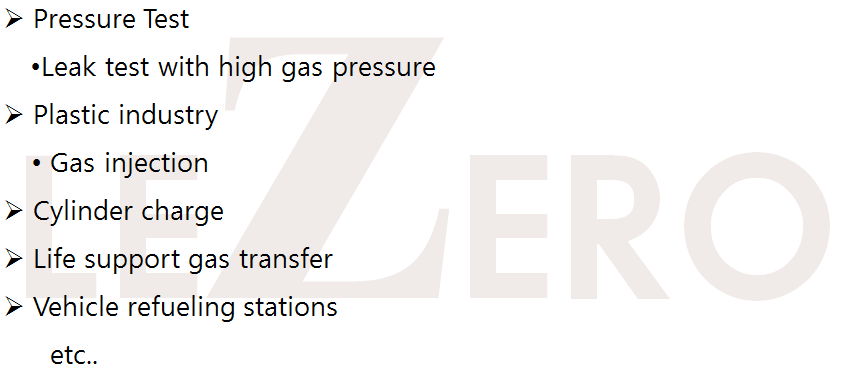

application for gas booster.png
?
Gas Booster application(내용).png

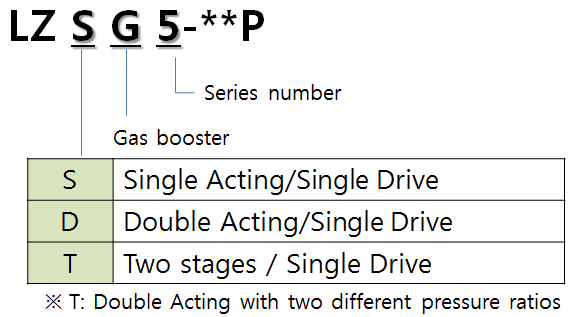

?Model Coding.png
LZSG5 Model.png

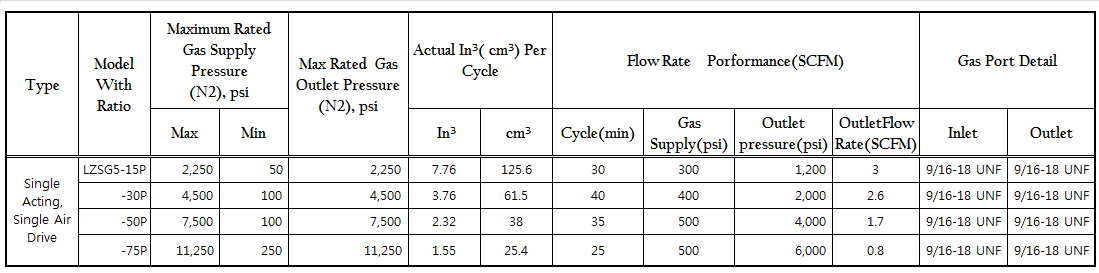

performance data.png
LZSG5 Performance data.png?

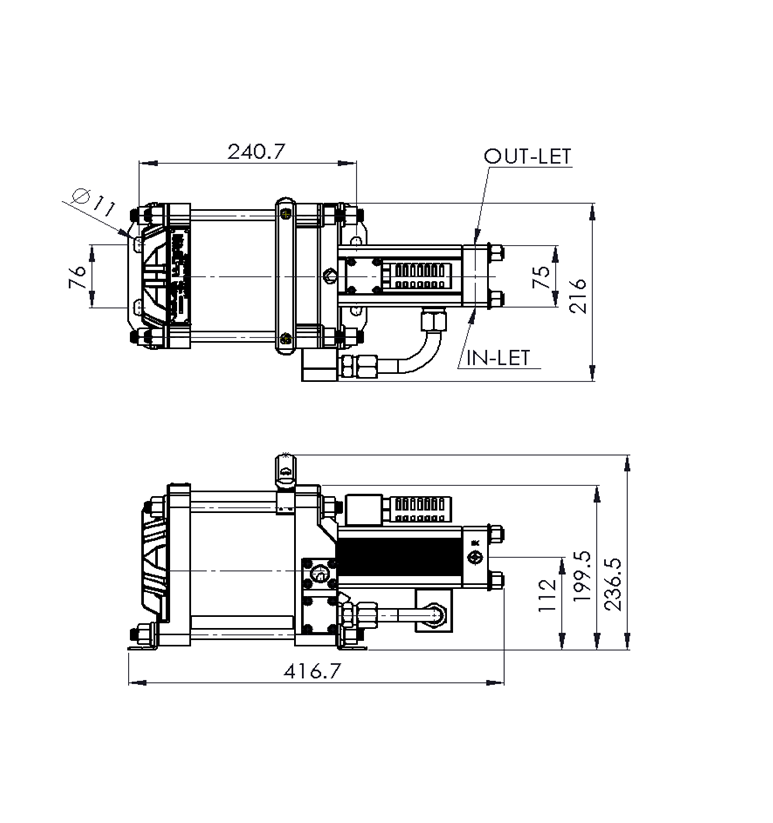

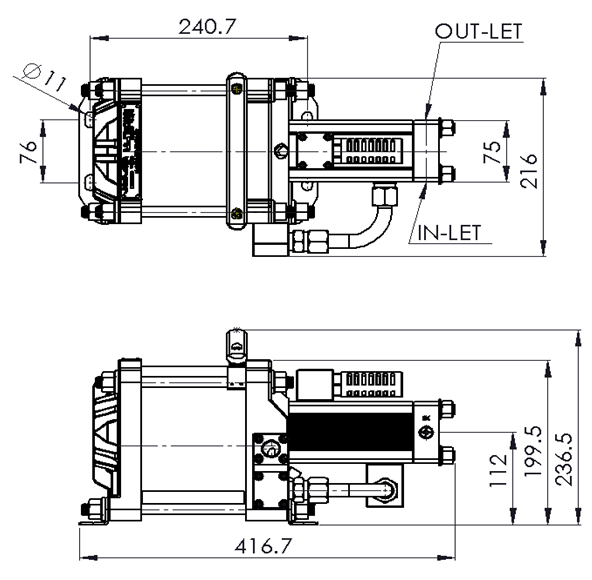

General layout drawing.png
?
?
?
?

?

?
?
?
?
